Yamada AODD Pumps
PrimeFlo Industrial is a direct supplier of genuine Yamada® air-operated double diaphragm (AODD) pumps and replacement parts. We provide application assistance, product selection, competitive pricing, and responsive customer support for industrial and municipal customers throughout Arizona and across the Southwest.
Whether you're replacing an existing pump or designing a new process, we can help you select the right Yamada solution for your application
Why Choose Yamada?
Yamada has earned a worldwide reputation for manufacturing dependable air-operated diaphragm pumps engineered for demanding applications across all industries. Their pumps are known for durability, chemical compatibility, energy efficiency, and long service life.
YAMADA PRODUCTS

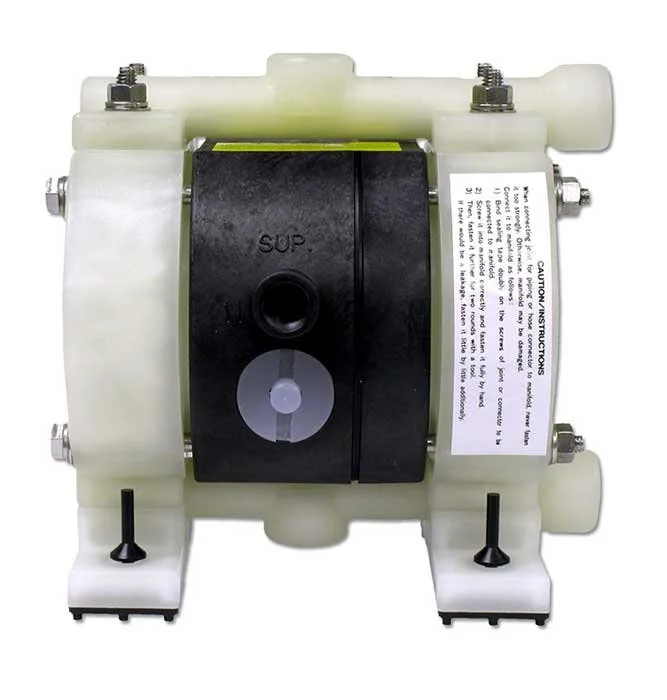

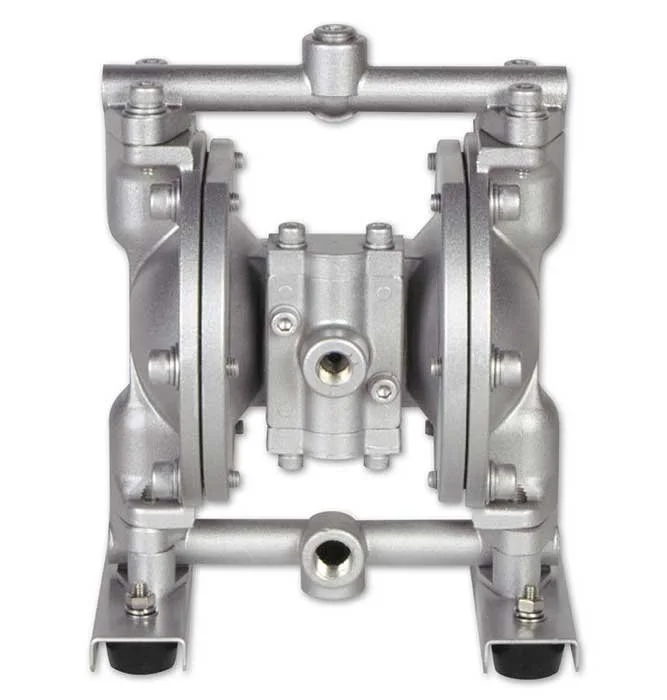

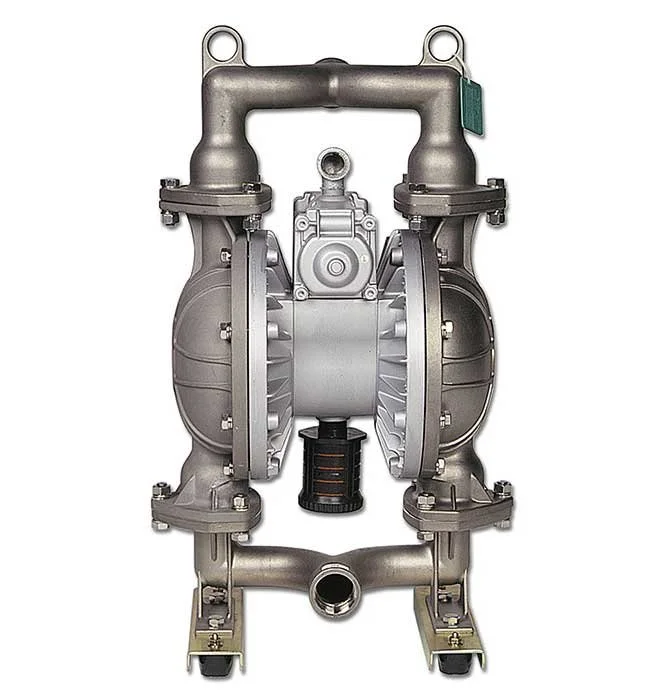

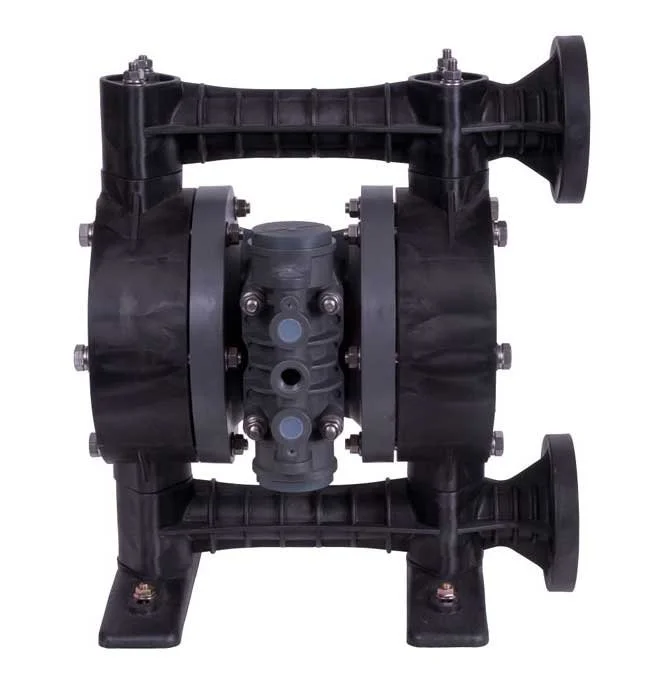

DIAPHRAGM NDP SERIES PUMPS
DIAPHRAGM DRUM PUMPS

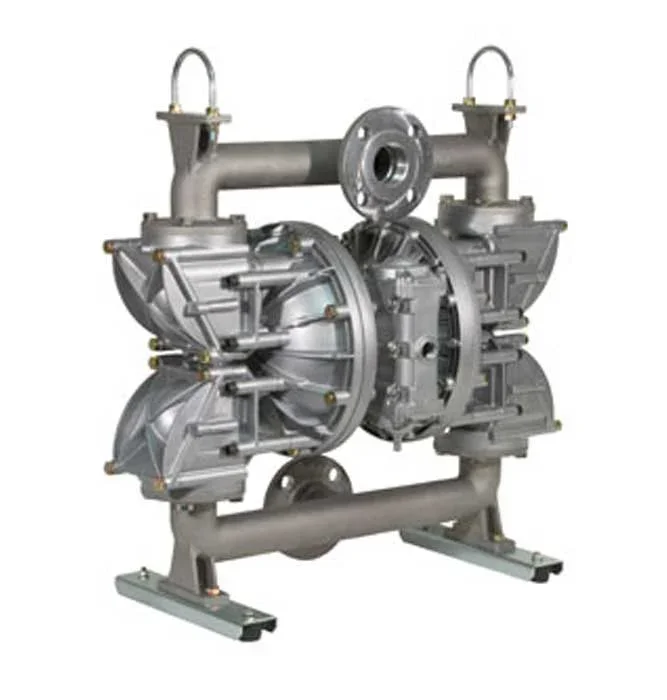

SOLIDS DIAPHRAGM PUMPS
HIGH PRESSURE DIAPHRAGM PUMPS
SPLIT MANIFOLD DIAPHRAGM PUMPS
POWDER DIAPHRAGM PUMPS

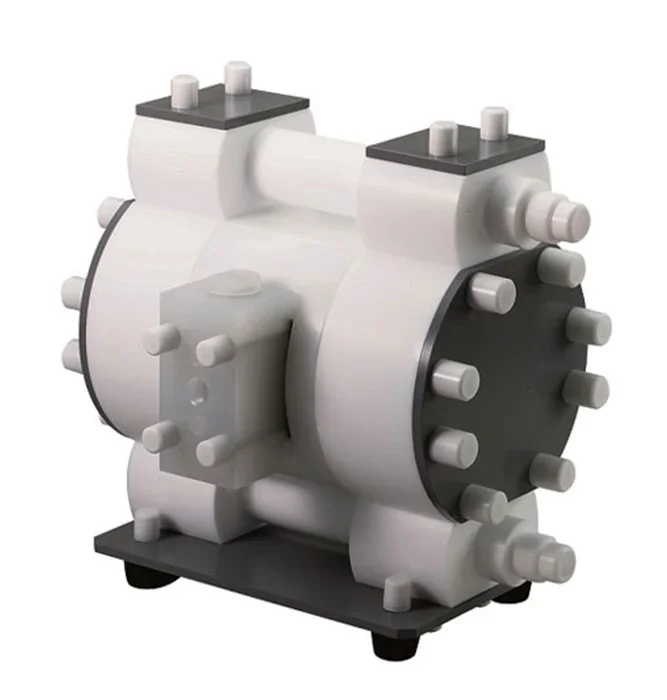

HI-PURITY DIAPHRAGM PUMPS
UL LISTED DIAPHRAGM PUMPS
CSA CERTIFIED DIAPHRAGM PUMPS
ELECTRO-POLISHED DIAPHRAGM PUMPS

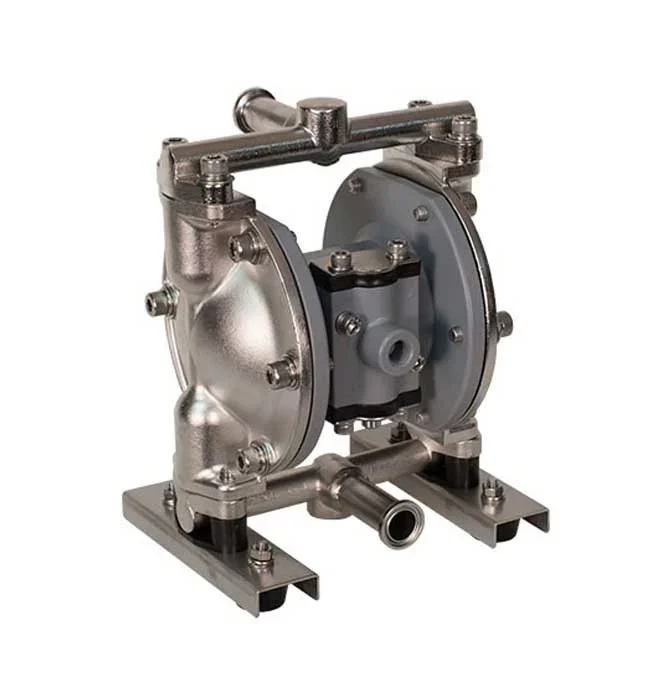

FDA DIAPHRAGM PUMPS

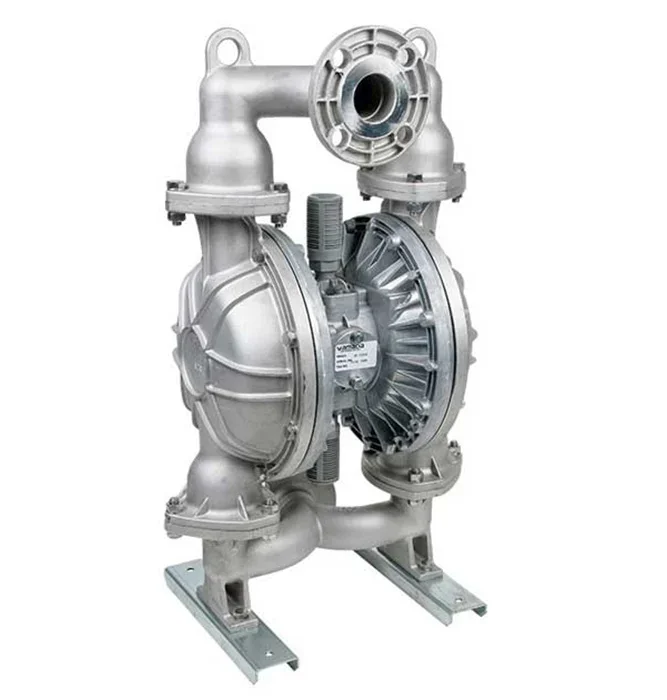

XTREME DUTY PRO XDP
ULTIMATE DIAPHRAGM PUMPS
REPAIR KITS, PARTS, & ACCESSORIES
Need Help Selecting the Right Yamada Pump?
Not sure which Yamada pump is right for your application? PrimeFlo Industrial can help evaluate your operating conditions, recommend the appropriate pump and materials, and provide a competitive quote for genuine Yamada equipment and OEM replacement parts.
Contact PrimeFlo Industrial today to discuss your application.
When should you specify a pneumatic double diaphragm pump?
An air operated double diaphragm pump is typically used where air is readily available, and the characteristics of the application are better suited for the technology. If you have solids, a thicker liquid, self-priming requirements, dry running potential, explosion proof specs, variable flow rates, shear sensitive liquids, something submerged, portability required, or the application calls for dead heading a diaphragm pump is an excellent choice.
Things like sumps, tanker unloading, and simple water or chemical transfer applications are the most common and basic. There are process or more challenging applications for the technology also in industries like carpet manufacturing, paint plants, pharmaceutical facilities, semiconductor fabs, the printing industry and powder transfer. Each application will have their own requirements and the pumps can be modified accordingly to achieve the flow rates required while also maintaining long pump lives.
There is the standard NDP pump line up and a list of customizations that can be made in addition to specialty pumps design for specific applications or industries. A couple of examples of that are electropolished or solid PTFE pumps for the semiconductor industry along with mechanically actuated XDP valve designed pumps for filter presses or even 2:1 high pressure designs and even powder transfer set ups. Certain industries may also require regulator agency qualifications like UL, CSA, FDA or ATEX which are also all available.
Double Diaphragm Pump Body Material Types
Double diaphragm pumps can be ordered in the following materials: Polypropylene (PPG), Kynar® (PVDF), Groundable Acetal, Aluminum (ADC-12) and Stainless Steel (316) and Cast Iron.
Double Diaphragm Pump Seal and check ball Material Types: Buna N 180°F (82°C), Neoprene 180°F (82°C), Santoprene®(TPO) 180°F (82°C), EPDM 212°F (100°C), PTFE 212°F (100°C), Hytrel® (TPE) 248°F (120°C), Viton® fluoroelastomer 248°F (120°C). Please note that Polypropylene and acetal pumps have a max liquid temperature of 180°F (82°C) regardless of diaphragm material.
Double Diaphragm Pump Common Fluids
There are many industrial paints, polymers, hardeners, varnishes, lacquers, greases, adhesives, latex, acids plus bases and titanium Dioxide or fumed silica powders that require mixing and blending at various temperatures and flow rates. Some of the most common acids pumped are Hydrofluoric, Sulfuric and Nitric. Some of the most common finished products pumped are wines, paints and various adhesives or coatings. A double diaphragm pump can continuously transfer single or plural components through the up and down stream avenues of a fluid handling system.
Double Diaphragm Pump Common Applications
Filter presses, adhesives, paints, chemical additives, winery pump-overs, general wastewater transfer, drum pumps, tanker unloading, spraying, dosing, pigments, colorants, flavorings, filling machines, mixing tanks, ceramics manufacturing, food and beverage processing, pharmaceuticals, cosmetics, mining slurry handling, dewatering, pulp and paper production, oil and gas processing, ink and dye handling, as well as electroplating solutions, all rely on diaphragm pumps for their fluid handling systems.
Yamada Resources
Access official Yamada literature, technical documentation, and engineering resources to help with product selection, installation, maintenance, and troubleshooting.
Description
Product brochures, engineering guides, and catalogs.
Service and maintenance manuals for Yamada pumps.
Technical specifications and performance information.
Pump breakdown and parts list.
Pump Selection Tool.
Pump Engineering Handbook Download.
Explore More from Yamada
Visit the official Yamada website to browse product literature, maintenance manuals, technical documents, and the complete Yamada product line.
